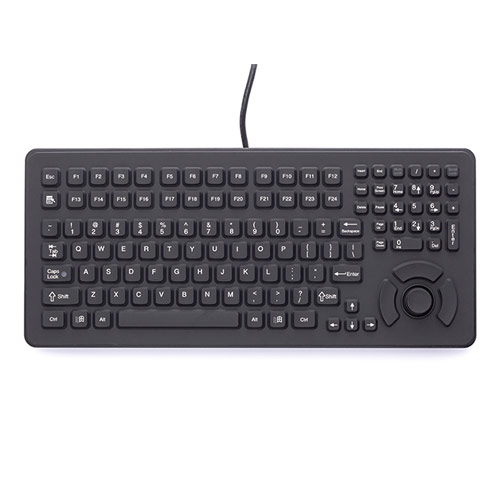

The DU-5K-FSR is designed to meet NEMA 4X specifications. It features an ABS polycarbonate case, 116 keys including 24 function keys, and a Force Sensing Resistor pointing device. These features make the DU-5K-FSR a total solution in one convenient package.
Features:
10-Key Numeric Pad
116-Key Functionality
Integrated Force Sensing Resistor Pointing Device
Polycarbonate Case with Mounting Holes
USB and PS/2 configurations available
| CERTIFICATIONS | NEMA 4X, UL60950, FCC Part 15 Class B |
| SHOCK | 3×11 ms pulses of 50g on each of 3 axes |
| CABLE | LENGTH: 10 feet (3 meters) DESIGN: “Y” PS/2 (providing separate keyboard and mouse connections), or Single-Cable USB |
| KEY SWITCH | MATERIAL: Industrial silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with mechanical snap |
| VIBRATION | POWER SPECTRAL DENSITY: 0.4g²/Hz FREQUENCY RANGE: 20Hz – 2 kHz DURATION OF TEST PER AXIS: 3 hours |
| POWER | PS/2: KEYBOARD: 35mA@5V (from Keyboard port) POINTER: 5mA@5V (from Mouse port) USB: 35mA@5V (from CPU port) |
| COMPATIBILITY | PS/2 KEYBOARD/POINTER: All Windows Operating Systems USB KEYBOARD/POINTER: All Windows and Macintosh OS |
| TEMPERATURE RANGE | STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-40F to +140F) |
| WEIGHT | 2.25 lbs +/- 0.10 lbs (1.02 kg +/- 0.05 kg) |
| WARRANTY | 1 Year Limited Warranty |
| HUMIDITY | 100% |
| DIMENSIONS | 14.94″ x 6.63″ x 1.81″ (w-h-d) 379.5mm x 168.4mm x 45.9mm |
| MODEL NUMBERS | DU-5K-PS2: With PS/2 cable DU-5K-USB: With USB cable |
